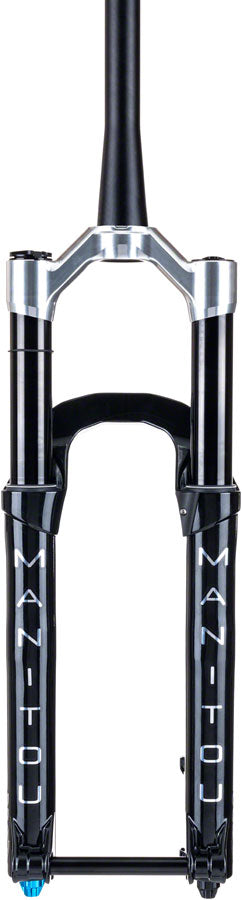

Manitou JUnit 34 Pro Suspension Fork - 24", 140 mm, 15 x 110 mm, 41 mm Offset, Gloss Black

$799.99 Regular price $887.99
No reviews
by Manitou
Low stock - 5 in stock, ready to ship

The Junit 34 Pro represents the absolute maximum in terms of performance, tuneability, lightweight construction and reliability, just like the adult versions of the Manitou Pro lineup. It is a veritable professional level fork with the only differences coming in the size and the tune specific to younger riders and their unique needs. Everything else is built up to the standards of the most demanding athlete competing at the sport’s highest level yet tailored to give specific benefits to the next generation of mountain biking stardom. At 1750 grams the Pro version is extremely light, especially considering the 100-160mm travel range it covers. The Dorado Air spring with IRT derives from the same technology used in top professional adult forks. The VTT 6 position compression damping and half cartridge adjustable TPC rebound dampening make for a ride that most adults would envy. With adjustable air, IRT, rebound and 6-position compression even smaller riders can enjoy the uncommon benefit of a suspension performance tailored to their specific and individual needs.

  • 34mm chassis increases stiffness for bigger kids to go even bigger! 7000 series tapered legs for a lightweight stiff chassis
  • DoradoTM air allows for internal travel adjustments with no added parts. New travel spacers account for negative air volume change, so the 100mm fork has the same initial stroke feel as the 160mm
  • The Dorado Air spring systems contain a unique balancing valve that equalizes the positive and negative air chambers during the air fill process. This gives the spring rate a consistent feel without any flat or dead spots in the stroke, along with giving riders of different weights the same initial stroke feel. Dorado Air is our lightest weight air spring technology
  • Infinite Rate Tune (IRT) allows for advanced spring tuning by independently adjusting air pressures in the beginning and end stroke. IRT technology creates a secondary positive air spring that effects only the middle to end stroke of the fork. This allows the main air spring to be set to lower pressures for improved small bump sensitivity while maintaining mid-stroke support and moderate to aggressive end-stroke ramp-up
  • VTT-6P compression damper features a single external compression adjuster that simultaneously adjusts High and Low speed damping characteristics. It features a fixed shim stack and a secondary shim stack that is preloaded by the external adjuster. The resulting wide tuning range combines the benefits of a Low-speed platform and High-speed progressive tune can suite any terrain. From fire-road climbs to big flowy jump lines to high-speed chunky rocks, VTT-6P can adapt to all terrain with flick of a switch
  • MPN: 191-39360-A203
  • UPC: 844171092019
  • Steerer TypeTapered
    ColorBlack w/Polished Crown
    Lockout SwitchNone
    Brake TypePost Mount 160
    Crown Race40
    Travel (mm)140
    Wheel Size29"
    Designed for ebikeYes
    External AdjustmentsRebound Damping
    External AdjustmentsHigh Speed Compression Damping
    External AdjustmentsLow Speed Compression Damping
    Defined ColorBlack
    Positive SpringAir
    Axle to Crown Length494
    Front Axle15mm Thru x 110mm
    Stanchion Diameter34
    Maximum Tire Width67
    S.H.I.S. Stem Clamp Diameter28.6
    Steerer Tube Length (mm)250
    SKU: SSFK1827
